Track Mounted Maxcrete
DETAILS

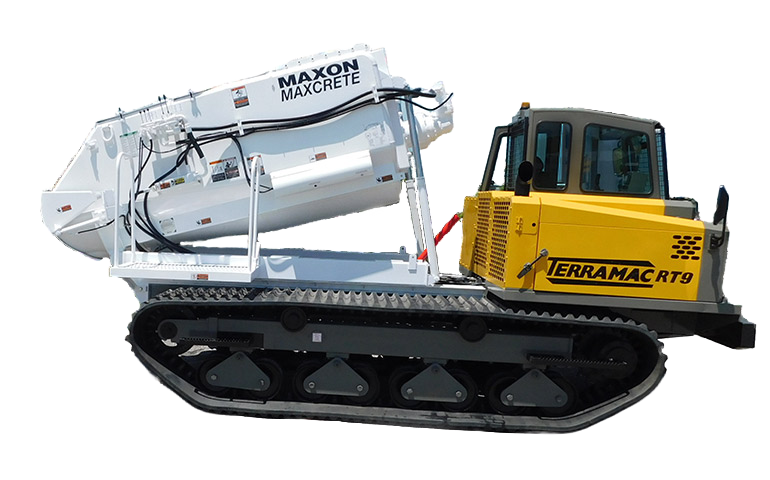

The Maxon Track-Mounted Maxcrete is the perfect solution for remote concrete delivery or paste backfill applications in difficult terrain applications. Maxon has partnered with leading rubber track mounted carrier manufacturers Morooka and Terramac to offer a full range of units with carrying capacities from 4.5 to 9 cu yds (3.4 to 6.9 cu m). The open top Maxcrete allows for easy loading and clean out, and the bi-directional agitator shaft insures delivery of quality concrete. The complete unit is hydraulically operated and integrated with the all-terrain carrier. Maxon offers both straight and rotator chassis.
- Heavy-duty agitator shaft with full sweep paddle design
- All hydraulic drive with heavy-duty gear reducer
- Tilt-away grid top for easy loading, visual inspection and clean-out
- Variable hydraulic operated discharge gate
- All-terrain rubber tracked carrier mount for accessing remote jobsites
- Hinged grid or solid steel covers
(Morooka)
MST2500VDL |
MST3500VDL |
CAPACITY6 yd3Â (5.5 m3) |
CAPACITY9 yd3Â (6.9 m3) |
LENGTH341” (8661 mm) |
LENGTH390” (9906 mm) |
WIDTH282” (7163 mm) |
WIDTH318” (8077 mm) |
HEIGHT102” (2591 mm) |
HEIGHT118” (2997 mm) |
WEIGHT (CHASSIS & MAXCRETE)38,000 LBS (17,236 KG) |
WEIGHT (CHASSIS & MAXCRETE)40,400 LBS (18,325 KG) |
*All weights and dimensions are subject to change
(Terramac)
RT9 |
RT14 |
CAPACITY4.5 yd3Â (3.4 m3) |
CAPACITY6 yd3Â (5.5 m3) |
LENGTH259” (6578 mm) |
LENGTH269” (6832 mm) |
WIDTH100” (2543 mm) |
WIDTH116” (2945 mm) |
HEIGHT119” (3024 mm) |
HEIGHT119” (3024 mm) |
*All weights and dimensions are subject to change
